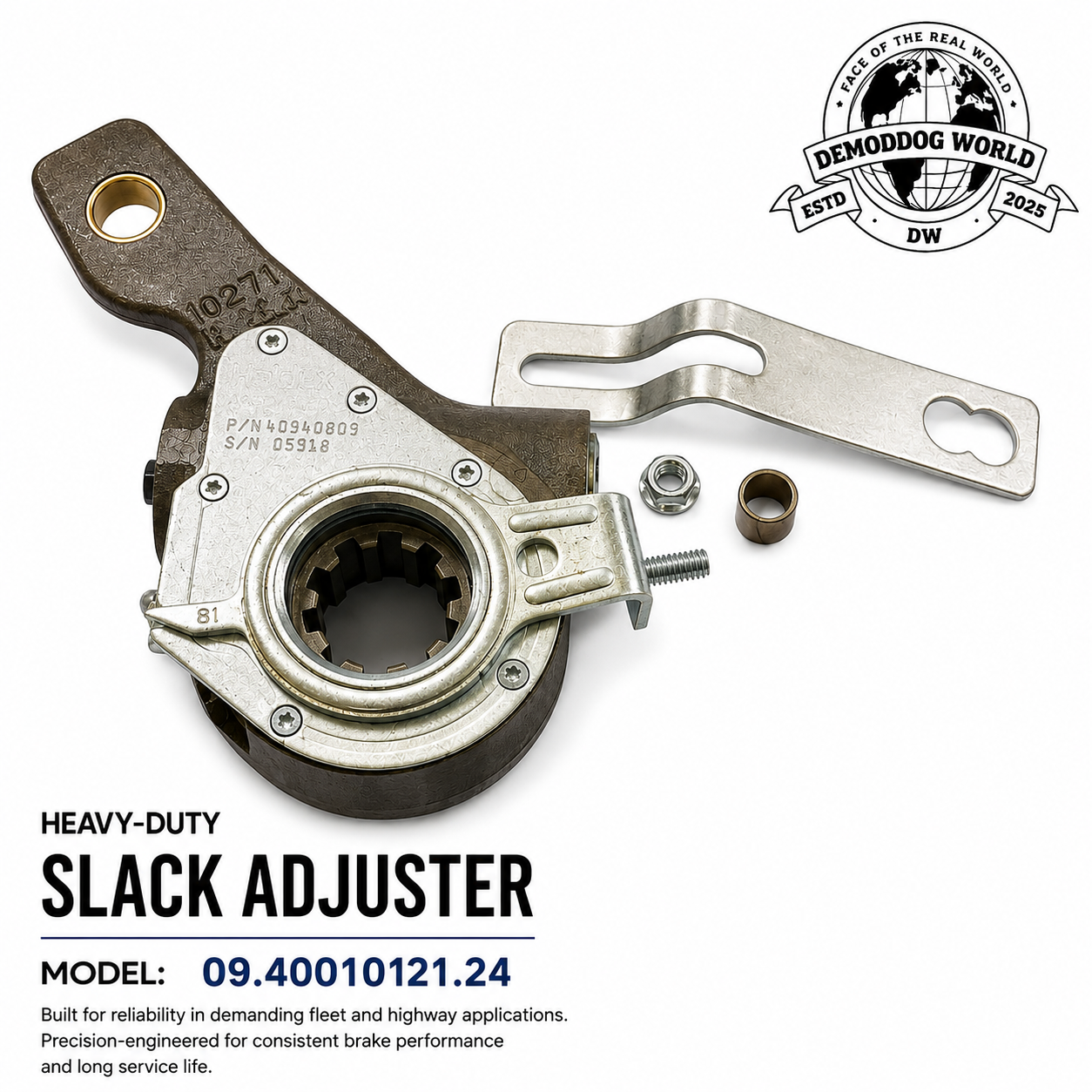

Part number 09.40010121.24 refers to the Demodog AA1 Clearance Sensing Automatic Brake Slack Adjuster Kit, designed for heavy-duty commercial tractor and trailer air brake systems.
Brand/Manufacturer: Demodog World
Spline Count: 10 splines
Spline Diameter: 1.50 inches
Arm Length: 5.5 inches from the cam centre to the yoke pin centre
Body Angle: 34°
Pinhole Size: 5/8 inch yoke pinhole
Adjuster Type: Clearance sensing (automatically maintains precise spacing between the brake liner and drum)
Cross-References:
Haldex: 40010121, 40010143
Bendix: 975628N, 278326N, 973530N
Stemco: MK21100S
Meritor: R806022A, R801043, R801041
Gunite: AS1132
